Ultra Wideband (UWD) Technology

  • Home
  • Ultra Wideband (UWD) Technology

The UWB Wand Module is a small table-top device used to configure and inventory your UWB Tags, allowing end users to easily set-up and manage thousands of tags. It connects via USB to a Windows computer, which runs Zebra's UWB Wand Application Software, and configures UWB Tags using a Low Frequency channel.

Frequency Range Width Weight Length Height Power
6.35 to 6.75 GHz 8.23 cm (3.24 in) 163 gm (5.76 oz) 13.4 cm (5.26 in) 3,99 cm (1.57 in) 5V @ 0.25A

Industries

  • Transportation
  • Manufacturing
  • Field Mobility
  • Warehouse Management
  • Location Solutions

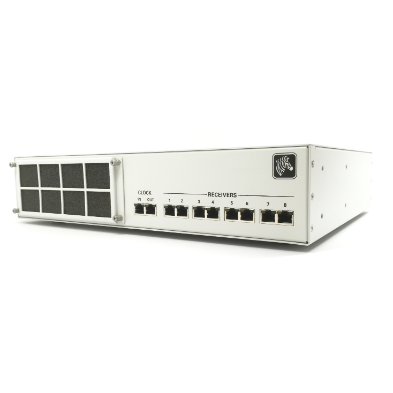

This intuitive and cost-effective product runs Zebra's advanced Ultra-Wideband (UWB) real-time locating system (RTLS), capable of delivering thousands of tag blinks per second at up to 30 cm accuracy. Unlike other RTLS systems which limit sensors to specific coverage cells, the Zebra UWB Hub allows all UWB Sensors to be used over your entire facility, yielding maximum coverage with minimal sensor count.

Data Throughput Width Weight Length Height Power Connectivity
Up to 3,500 1 Hz tags/hub 22.9 cm (9.0 in) 1.64 kg (58 oz) 35.6 cm (14.0 in) 9 cm (3.5 in) 100 – 240 VDC 50/60 Hz 2.5 A (Provides power for up to 64 total sensors) Ethernet Cat 5e

Industries

  • Transportation
  • Manufacturing
  • Field Mobility
  • Warehouse Management
  • Location Solutions

This product detects UWB pulses emitted by Zebra's UWB Tags and provides superb asset visibility, within Zebra’s RTLS solution, through a wide range of cutting-edge features. UWB Sensors are offered with three antenna types to choose from – High-gain, Mid-gain and Omni.

Frequency Range Power
6.35 to 6.75 GHz 20 – 48 VDC (24mA @ 48VDC)

Industries

  • Transportation
  • Manufacturing
  • Field Mobility
  • Warehouse Management
  • Location Solutions

Perfect for access control, this product offers a detection level that exceeds the capabilities of other RFID technologies through the use of patented short-pulse, ultra-wideband (UWB) technology. The UWB Vision Reader can be deployed alongside the UWB RTLS solution, or alone through an Ethernet connection.

Industries

  • Transportation
  • Manufacturing
  • Field Mobility
  • Warehouse Management
  • Location Solutions
