Retail RFID - Self Checkout Kiosk

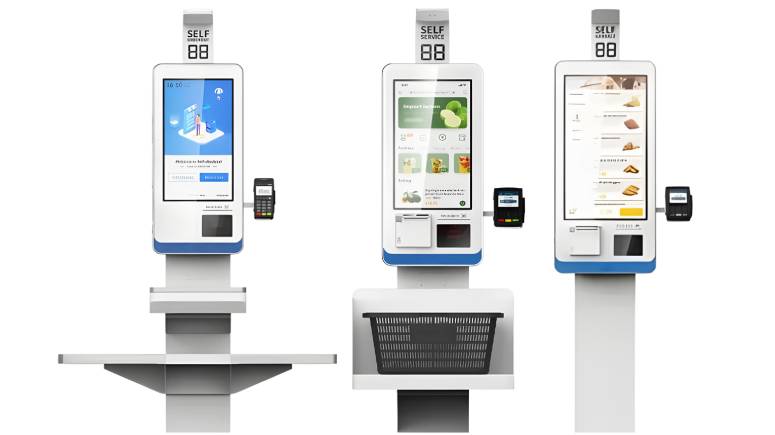

RFID - SELF CHECKOUT KIOSK

Markss Self-Checkout (SCO) Kiosk represents a significant advancement in retail convenience. This solution offers a streamlined and personalized shopping experience, potentially leading to increased operational efficiency and higher customer satisfaction.

KIOSKS
  • SCO Convenience
  • SCO Lifestyle & Retail
  • Self-Service

RFID Scanning

  • Integration of RFID and barcode scanning technologies for maximum flexibility.

Flexible Interface

  • Customizable interface to reflect your brand identity and messaging.

Remote Support

  • Remote monitoring & management for proactive maintenance and support.

Module Design

  • Scalable design to accommodate varying store layouts and traffic volumes.

Payment Module

  • Secure payment processing options, including contactless payment methods.

Effortless Shopping Experience

This hybrid system caters to diverse customer preferences by offering both RFID scanning and traditional barcode scanning. RFID technology facilitates expedited product processing, while barcode scanning provides a familiar and user-friendly alternative.

Enhanced Operational Efficiency

Optimizes staff allocation and accelerates customer throughput. This versatile system provides retailers with the flexibility to cater to diverse customer preferences while streamlining operational efficiency.

Personalized Service

Personalize the shopping experience with targeted promotions and recommendations based on purchase history. This data-driven approach fosters customer engagement and loyalty.

Experience the Difference

Modernize your checkout experience with our innovative RFID & Barcode Kiosk. Contact us for a demo to explore improved efficiency and customer satisfaction.

Specification- Kiosk

OS Support Windows 10 IoT LTSC
Processor Intel® Core™ i3-7100U 2C/4T 2.4GHz 3MB
System Memory DDR4 8GB
Storage Device MSATA 128GB
Power Supply 12V/60W
Serial Port RS232
Standard USB Port USB 3.0 x 4 (12V PowerUSB x 3 + 24V PowerUSB x 1)
Display Port HDMI x 1 + VGA x 1
LAN Port 10/100/1000 Mb x 1
Audio Internal 5W speaker x 2

Display & Touch

LCD 21.5"
Resolution 16:9 1920 x 1080
Touch Projected Capacitive (10-point multi-touch)

Physical Dimension

Dimension (W x D x H in mm) 367mm x 139mm x 767mm (21.5")
Weight (N. W. in kg) 19kg (21.5")

Environmental

Operating Condition 0°C - 50°C, 20%RH - 90%RH
Storage Condition -20°C - 70°C, 10%RH - 90%RH

Standard Components

Scanner Zebra DS7708 barcode scanner, support 1D&2D and scanning mobile phone screen
Printer EPSON TM-m30 Printing mode: Line-based thermal printing Printing speed: Up to 200mm/s Paper width: 80mm / 58mm Service life of print head: 100km Service life of cutter: 1.5 million times

Additional Components

EMV Payment Device Bracket Custom bracket support for various EMV payment devices
Self Check Out Kiosk - Buket Detector 580mm length X 580mm width X 445mm height
Self Check Out Kiosk - Stand 350mm length X 400mm width X 1260mm Height

RFID Characteristics

Max Receive Sensitivity -86 dBm monostatic
Air Protocols SO 18000-63 (EPC Class 1 Gen 2 V2)
Frequency (UHF Band) EU- 865 MHZ - 868 MHz
Transmit Power Output 0dBm to +33.0dBm: PoE+, 24V External DC, Universal 24 VDC Power Supply; 0dBm to +31.5dBm: PoE, 12V External DC (4-port-models only), 24V External DC, Universal 24 VDC Power Supply
Management Protocols RM 1.0.1 (with XML over HTTP/HTTPS and SNMP binding); RDMP
Network Services DHCP, HTTPS, FTPS, SFPT, SSH, HTTP, FTP, SNMP and NTP
Network Stack Pv4 and IPv6
API Support Host Applications — .NET, C and Java EMDK Embedded Applications — C and Java SDK
