Retail RFID - SKU Validation Box

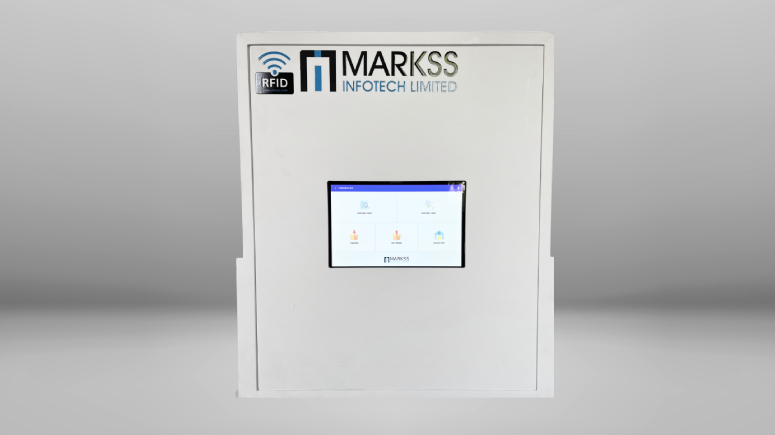

RFID - SKU VALIDATION BOX

Markss Validation Box represents an advanced approach to SKU verification. This innovative solution guarantees precise SKU identification, facilitating streamlined workflows and enhanced operational productivity.

KIOSKS
  • SCO Convenience
  • SCO Lifestyle & Retail
  • Self Service QSR

RFID Reading

  • High-speed RFID reading for efficient SKU validation.

Customizable Rules

  • Customizable validation rules to suit your specific requirements.

Compact Design

  • Compact and ergonomic design for easy integration into any workspace.

User-friendly Interface

  • User-friendly interface for intuitive operation and configuration.

Robust Durability

  • Robust construction for durability in demanding environments.

Precise SKU Validation

The RFID Validation Box leverages RFID technology to achieve highly accurate SKU tag reading and identification. Real-time validation data facilitates immediate intervention in case of mitigating potential errors and associated costs.

Streamlined Operations

The RFID Validation Box facilitates an automated SKU verification process, optimizing resource allocation and time management.

Enhanced Productivity

The RFID Validation Box offers the capability to scan multiple items, expediting the verification process while maintaining exceptional accuracy. This eliminates the requirement for manual SKU checks, minimizing the potential for human error.

Experience the Difference

Explore the RFID Validation Box to ensure exceptional accuracy, streamline processes, and enhance overall SKU verification processes by contacting us today for a demonstration.

RFID Characteristics

Max Receive Sensitivity -86 dBm monostatic
Air Protocols SO 18000-63 (EPC Class 1 Gen 2 V2)
Frequency (UHF Band) EU- 865 MHZ - 868 MHz
Transmit Power Output 0dBm to +33.0dBm: PoE+, 24V External DC, Universal 24 VDC Power Supply; 0dBm to +31.5dBm: PoE, 12V External DC (4-port-models only), 24V External DC, Universal 24 VDC Power Supply
Management Protocols RM 1.0.1 (with XML over HTTP/HTTPS and SNMP binding); RDMP
Network Services DHCP, HTTPS, FTPS, SFPT, SSH, HTTP, FTP, SNMP and NTP
Network Stack Pv4 and IPv6
Communications 10/100 BaseT Ethernet (RJ45); USB Host and Client (Type A and B)*; Serial (DB9)
API Support Host Applications — .NET, C and Java EMDK Embedded Applications — C and Java SDK

Physical Characteristics

Display 10.1 inch/25.7 cm: 500 nits, color WUXGA 1920x1200; Corning® Gorilla® Glass
Touch Panel Capacitive multi-touch
Keyboard Options Virtual, Bluetooth, USB

Performance Characteristics

CPU Qualcomm Snapdragonᵀᴹ SM6375 Octa-Core (8): 2.2 GHz (2) and 1.8 GHz (6)
Operating System Android 11; upgradeable to Android 14
Memory Standard: 4 GB LPDDR4X SDRAM/64 GB UFS Flash
Wi-Fi (WLAN) IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax 2x2 MU-MIMO; Wi-Fi® certified; IPv4, IPv6 (Wi-Fi 6)
Bluetooth (WPAN) Bluetooth v5.1 / 2.1+EDR Class 2 (Bluetooth LE)

Dimensions (External)

Width 550 mm
Height 600 mm
Depth 570 mm

Dimensions (Internal)

Width 470 mm
Height 460 mm
Depth 430 mm

Application

Inward Validation Yes
Outward Validation Yes
Inventory Yes
Read and write operations Yes
